Affordable, Professional Spectral Color Measurement

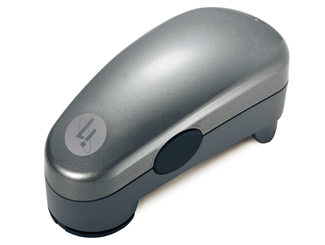

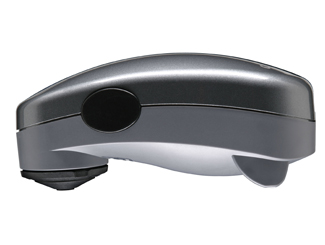

Designed for your unique needs, i1Basic is the perfect system to get you working effectively in a color managed ecosystem. It includes the industry standard i1Pro spectrophotometer and i1 Match Monitor profiling software, helping you achieve accurate color on all your LCD, CRT and laptop displays. Create profiles for any ambient light condition, allowing optimal viewing of color-critical work. Match all monitors in your workgroup with reference profiles. Select from unlimited gamma white point and luminance settings, and optimize gray balance for more neutral and better-defined grays. You can even validate and trend monitor performance.
The i1Basic package also includes i1Share software, which allows you to measure spot colors and capture both flash and ambient light. i1Pro is supported by all major RIP manufacturers, so your profiles will be compatible.
The i1Basic system is also available in a UV version for professionals who require UV filtration for certain types of ink and printing.
As your color management needs increase, simply add additional i1Match modules through a purchased access code to increase the functionality of your i1Basic solution: RGB & CMYK Output, Scanner, Digital Projector, Digital Camera, and i1Editor.
Also Included with i1Basic
LANGUAGE VERSIONSThis product is available in the following languages:
i1Defined Interactive Training is available in the following languages:
PBC MONITOR SUPPORT (PUSH BUTTON CALIBRATION)
Spectral measurement device:
Reﬂectance single measurement
Reﬂectance scanning measurement with automatic patch detection

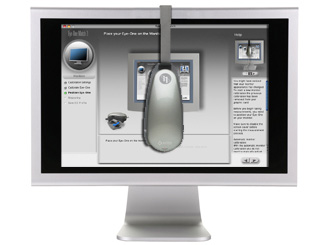

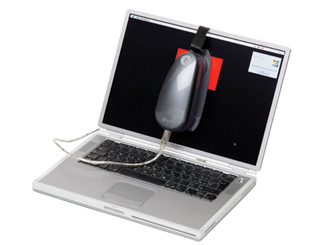

Emission: radiance measurement (monitor measurement)
Emission: irradiance measurement (light measurement)
Spectral analyzer: Holographic diffraction grating with 128 pixel diode array
Optical resolution: 10nm
Physical sampling interval: 3.5nm
Spectral data: Range: 380 ... 730 nm in 10nm steps
Measurement aperture: 4.5mm diameter
Interface: USB 1.1
Physical dimensions: Length 151mm, width 66mm, height 67mm (6 x 2.6 x 2.6 inches)
Weight: 185g (6.5oz)
Accessories included: Calibration plate, USB cable, monitor holder, positioning target, scanning ruler, and light measurement head
Measurement geometry: 45°/0°; ring illumination optics, DIN 5033
Light source: Gas ﬁlled tungsten (Type A) No or UV cut (Filters not exchangeable)
Inter-instrument agreement: Average DE*94 0.4, max. DE*94 1.0 (Deviation from X-Rite manufacturing standard at 23°C for single measurement mode on 12 BCRA tiles (D50,2°)
Short-term repeatability: DE*94 <= 0.1 (D50,2°ƒ), with respect to the mean CIELab value of 10 measurements every 3 seconds on white
Data format: Spectral radiance (mW/nm/m2 /sr); Luminance Y (cd/m2)
Measurement range: 0.2 ... 300 cd/m2
Short-term repeatability: x,y: +/- 0.002 typical (CRT 5000°K, 80 cd/m2)
Type: Cosine-corrected diffuse light measurement head
Diameter: 6.0 mm
Data format: Spectral irradiance (mw/nm/m2), Illuminance Y (lux)
Power supply: Device powered by USB. USB 1.1 high power device.
i1 Ruler: 33.5 cm x 17 cm
i1 Ruler Board: 35.5 cm X 26.5 cm folded, 35.5 cm X 40 cm unfolded

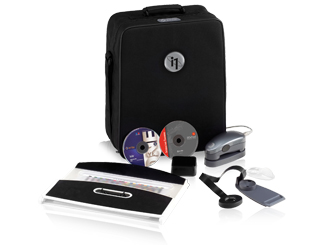

i1Pro spectrophotometer (measurement device), ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, i1 Reflective Scan Target, i1Match v3.x software for monitors, i1Share software for creating, evaluating and communicating color, Interactive Training Modules, Digital Pantone Library, soft carrying case and upgrade voucher (50% discount on any one i1Match Module).
Color Control and Creativity for Photography – from Capture to Edit
Reduce your image processing time and improve quality control in your Raw or JPEG workflow with the powerful color capabilities of the ColorChecker Passport Photo. Quickly and easily capture accurate color, instantly enhance portraits and landscapes, and maintain color control and consistency from capture to edit. Ideal for photographers.
i1Pro Accessory to facilitate spot measurements. Clear plastic shoe allows for precise positioning ensuring accurate data.
