Maximize the value of your i1 investment i1XTreme is a comprehensive solution that meets all your primary color control needs to implement a complete end-to-end color managed workflow. The industry-standard i1 Pro is the only measuring device necessary for both emissive (monitors) and reflective (print) profiling, giving you complete control over each device in your digital workflow. If you require UV filtration, a UV cut version is also available. The i1XTreme system is comprehensive enough to be the only color management solution you’ll ever need. Use it to profile your monitors, scanners, digital cameras (with the optional ColorChecker Digital SG), and RGB and CMYK printers. True colors on each of your LCD, CRT and laptop monitors

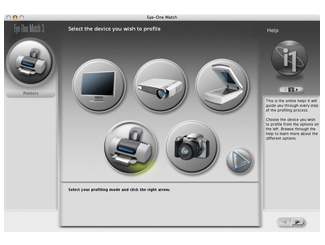

Take control of your colorThe included i1Match software helps you take full advantage of your i1 system, with its guided, step-by-step interface, so you don’t need extra manuals or days of training. i1Match makes profile creation and editing simple with automatic functions for the most popular needs. Measure, mix and share spot colors, make global color corrections, capture both flash and ambient light, and build CxF files. i1Share lets you measure spot colors and incorporate them into your work, or use them to verify the colors in your photo are exact. Plus, global color changes are a snap.
With i1XTreme you'll have complete color control at your fingertips.
Plus, i1Match provides simple profile editing functions for the most popular editing needs, and spot color measurements to incorporate in your work or use to make sure the colors in your proof are exact.
*Please see Specifications tab for complete listing.
PBC MONITOR SUPPORT (PUSH BUTTON CALIBRATION)
LANGUAGE VERSIONSThis product is available in the following languages:
i1Defined Interactive Training is available in the following languages:

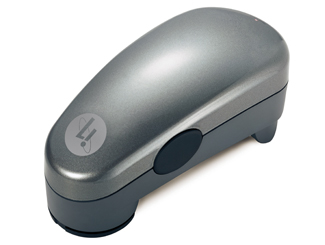

Spectral measurement device, supported measurement modes:
- Reflectance single measurement

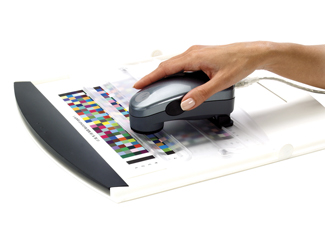

- Reflectance scanning measurement with automatic patch detection

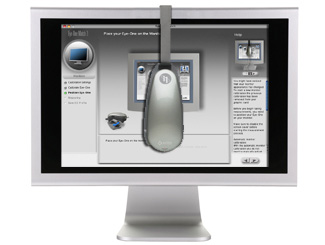

- Emission: radiance measurement (monitor measurement)
- Emission: irradiance measurement (light measurement)
Spectral analyzer: Holographic diffraction grating with 128-pixel diode array
Optical resolution: 10nm
Physical sampling interval: 3.5nm
Spectral data: Range: 380 ... 730 nm in 10nm steps
Measurement aperture: 4.5mm diameter
Interface: USB 1.1Physical dimensions: Length 151mm, width 66mm, height 67mm (6 x 2.6 x 2.6 inches)
Weight: 185g (6.5oz)
Accessories included: Calibration plate, USB cable, monitor holder, positioning target, scanning ruler, and
light measurement head
Measurement geometry: 45°/0° ring illumination optics, DIN 5033
Light source: Gas filled tungsten (Type A)
Physical filters: No or UV cut (Filters not exchangeable)
Inter-instrument agreement: Average DE*94 0.4, max. DE*94 1.0 (Deviation from X-Rite manufacturing standard at 23°C for single measurement mode on 12 BCRA tiles (D50,2°)
Short-term repeatability: DE*94 <= 0.1 (D50,2°), with respect to the mean CIELab value of 10 measurements every 3 seconds on white
Data format: Spectral radiance (mW/nm/m2 /sr); Luminance Y (cd/m2)
Measurement range: 0.2 ... 300 cd/m2
Short-term repeatability: x,y: +/- 0.002 typical (CRT 5000°K, 80 cd/m2)
Type: Cosine-corrected diffuse light measurement head
Diameter: 6.0 mm
Data format: Spectral irradiance (mw/nm/m2), Illuminance Y (lux)
Power supply: Device powered by USB. No additional charger or battery required. USB 1.1 high power device.
i1 Ruler: 33.5 cm x 17 cm
i1 Ruler Board: 35.5 cm X 26.5 cm folded/35.5 cm X 40 cm unfolded

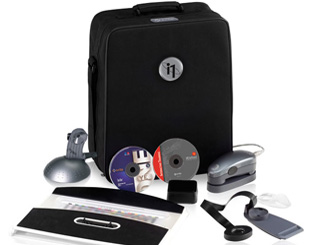

i1XTreme includes:i1Pro spectrophotometer (measurement device), ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, i1 Reflective Scan Target, i1Match v3.x software for monitors, RGB, CMYK, Scanners, Digital Cameras, Digital Projectors and Profile Editor, i1Share software for creating, evaluating and communicating color, Beamer holder, Scanner Profiling Chart, Interactive Training Modules, Digital Pantone library, soft carrying case and $400 upgrade voucher valid towards any one ProfileMaker solution.
i1Pro Accessory to facilitate spot measurements. Clear plastic shoe allows for precise positioning ensuring accurate data.
